C-pillar trim

REMOVAL

(1) Remove the inner scuff plate.

(2) Remove the upper door opening trim.

(3) Remove the upper quarter panel trim.

(4) Remove the quarter panel trim extension.

(5) Remove the screws attaching the C-pillar trim to the C-pillar (Fig. 68).

(6) Separate the C-pillar trim from the C-pillar.

INSTALLATION

(1) Position the C-pillar trim on the C-pillar.

(2) Install the screws attaching the C-pillar trim to the C-pillar.

(3) Install the quarter panel trim extension.

(4) Install the upper quarter panel trim.

(5) Install the upper door opening trim.

(6) Install the inner scuff plate.

Quarter panel trim extension

REMOVAL

(1) Remove the inner scuff plate.

(2) Separate quarter panel trim extension from the wheelhouse and quarter trim panels (Fig. 68).

INSTALLATION

(1) Position the quarter panel trim extension on the wheelhouse and quarter trim panels.

(2) Install the inner scuff plate.

Quarter panel trim and wheelhouse cover

REMOVAL

(1) Remove the inner scuff plate.

(2) Remove quarter panel trim extension.

(3) Remove liftgate scuff plate.

(4) Remove the screws attaching the quarter panel trim from the quarter panel and wheelhouse trim cover (Fig. 68) and (Fig. 65).

(5) If necessary, remove the tire and mounting brackets from the left quarter panel trim (Fig. 69).

(6) Remove the screws attaching the wheelhouse cover to the wheelhouse.

(7) Separate the wheelhouse cover from the wheelhouse

INSTALLATION

(1) Position the wheelhouse cover on the wheelhouse.

(2) Install the screws attaching the wheelhouse cover to the wheelhouse.

(3) If removed, install the tire and mounting bracket on the left quarter panel trim.

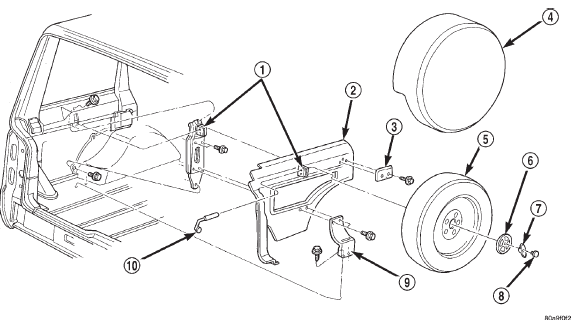

Fig. 69 Spare Tire
Fig. 69 Spare Tire

1 - MOUNTING BRACKET
2 - QUARTER TRIM
3 - TIRE REST
4 - COVER
5 - TIRE/WHEEL
6 - CUP
7 - WING NUT
8 - CAP
9 - MOUNTING BRACKET
10 - HOLD DOWN BOLT

(4) Position the quarter panel trim on the quarter panel and wheelhouse cover.

(5) Install the screws attaching quarter panel trim on the quarter panel and wheelhouse cover (6) Install liftgate scuff plate.

(7) Install quarter panel trim extension.

(8) Install the inner scuff plate.
