RECOMMENDATIONS

When service is required, DaimlerChrysler Corporation recommends that only Mopart brand parts, lubricants and chemicals be used. Mopar provides the best engineered products for servicing Daimler- Chrysler Corporation vehicles.

INTERNATIONAL SYMBOLS

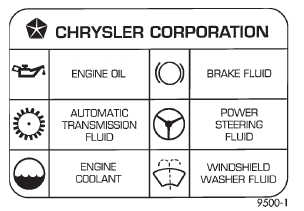

DaimlerChrysler Corporation uses international symbols to identify engine compartment lubricant and fluid inspection and fill locations (Fig. 1).

CLASSIFICATION OF LUBRICANTS

Only lubricants bearing designations defined by the following organization should be used to service a DaimlerChrysler Corporation vehicle.

Society of Automotive Engineers (SAE)
American Petroleum Institute (API) (Fig. 2)
National Lubricating Grease Institute

Fig. 1 International Symbols

ENGINE OIL

SAE VISCOSITY RATING INDICATES ENGINE OIL VISCOSITY

An SAE viscosity grade is used to specify the viscosity of engine oil. SAE 30 specifies a single viscosity engine oil. Engine oils also have multiple viscosities. These are specified with a dual SAE viscosity grade which indicates the cold-to-hot temperature viscosity range.

SAE 30 = single grade engine oil.
SAE 10W-30 = multiple grade engine oil.

DaimlerChrysler Corporation only recommends multiple grade engine oils.

API QUALITY CLASSIFICATION

This symbol (Fig. 2) on the front of an oil container means that the oil has been certified by the American Petroleum Institute (API) to meet all the lubrication requirements specified by DailmlerChrysler Corporation.

Refer to Group 9, Engine for gasoline engine oil specification.

Fig. 2 API Symbol

GEAR LUBRICANTS

SAE ratings also apply to multiple grade gear lubricants. In addition, API classification defines the lubricants usage.

LUBRICANTS AND GREASES

Lubricating grease is rated for quality and usage by the NLGI. All approved products have the NLGI symbol (Fig. 3) on the label. At the bottom NLGI symbol is the usage and quality identification letters.

Wheel bearing lubricant is identified by the letter "G". Chassis lubricant is identified by the latter "L".

The letter following the usage letter indicates the quality of the lubricant. The following symbols indicate the highest quality.

Fig. 3 NLGI Symbol

1 - WHEEL BEARINGS
2 - CHASSIS LUBRICATION
3 - CHASSIS AND WHEEL BEARINGS

Specifications

FLUID CAPACITIES FUEL TANK

All . . . . . . . . . . . . . . . . . . . . . . . . 76.4 L (20.2 gal.)

ENGINE OIL W/FILTER CHANGE

2.5L . . . . . . . . . . . . . . . . . . . . . . . . . 3.8 L (4.0 qts.)
4.0L . . . . . . . . . . . . . . . . . . . . . . . . . 5.7 L (6.0 qts.)

COOLING SYSTEM

2.5L . . . . . . . . . . . . . . . . . . . . . . . . . 9.5 L (10 qts.)*
4.0L . . . . . . . . . . . . . . . . . . . . . . . 11.4 L (12 qts.)**

*Includes 2.2 L (2.3 qts) for coolant recovery reservoir.

**Includes 0.9 L (1.0 qt) for coolant recovery reservoir.

AUTOMATIC TRANSMISSION

Dry fill capacity*

AW4 . . . . . . . . . . . . . . . . . . . . . . . . 7.8 L (16.5 pts.)
30RH . . . . . . . . . . . . . . . . . . . . . . . 4.67 L (9.86pts.)

*Depending on type and size of internal cooler, length and inside diameter of cooler lines, or use of an auxiliary cooler, these figures may vary. Refer to Group 21, Transmission for proper fluid fill procedure.

MANUAL TRANSMISSION

AX5 (4X2) . . . . . . . . . . . . . . . . . . . . 3.5 L (3.7 qts.)
AX5 (4X4) . . . . . . . . . . . . . . . . . . . . 3.3 L (3.5 qts.)
AX15 (4X2) . . . . . . . . . . . . . . . . . . . 3.15 L (3.3 qts.)
AX15 (4X4) . . . . . . . . . . . . . . . . . . . 3.15 L (3.3 qts.)

TRANSFER CASE

SELEC-TRAC 242 . . . . . . . . . . . . . 1.3 L (2.85 pts.)
COMMAND-TRAC 231 . . . . . . . . . . 1.0 L (2.2 pts.)

FRONT AXLE

181-FBI . . . . . . . . . . . . . . . . . . . . 1.48 L (3.13 pts.)
186-FBI . . . . . . . . . . . . . . . . . . . . . . 1.18L (2.5pts.)

REAR AXLE

194-RBI . . . . . . . . . . . . . . . . . . . . 1.66 L (3.5 pts.*)
8-1/4 . . . . . . . . . . . . . . . . . . . . . . 2.08 L (4.4 pts.**)

* When equipped with TRAC-LOK, include 3.5 ounces of Friction Modifier Additive.

** When equipped with TRAC-LOK, include 4 ounces of Friction Modifier Additive.

POWER STEERING

Power steering fluid capacities are dependent on engine/chassis options as well as steering gear/cooler options. Depending on type and size of internal cooler, length and inside diameter of cooler lines, or use of an auxiliary cooler, these capacities may vary.

Refer to Section 19 of the service manual for proper fill and bleed procedures.
