Jeep Cherokee (XJ): Specifications. Special tools

Jeep Cherokee (XJ) 1984 - 2001 Service Manual > Transmission and transfer case > NV3550 manual transmission > Specifications. Special tools

Specifications

TORQUE

Description Torque

Clutch Housing Bolts . . . 54-61 N·m (40-45 ft. lbs.)
Crossmember-To-Frame Bolts . . . . . . . . 61-75 N·m (44-55 ft. lbs.)
Crossmember-To-Insulator Nuts . . . . . . 54-61 N·m (40-45 ft. lbs.)
Drain/Fill Plug . . . . . . . . . 9-27 N·m (14-20 ft. lbs.)
Front-To-Rear Housing Bolts . . . . . . . . . 30-35 N·m (22-26 ft. lbs.)
Front Bearing Retainer Bolts . . . . . . . . . 7-10 N·m (5-7 ft. lbs.)
Idler Shaft Bolts . . . . . . 19-25 N·m (14-18 ft. lbs.)
Rear Bearing Retainer Bolts . . . . . . . . . 30-35 N·m (22-26 ft. lbs.)
Shift Tower Bolts . . . . . . . . . 7-10 N·m (5-7 ft. lbs.)
Slave Cylinder Attaching Nuts . . . . . . . . . . 23 N·m (200 in. lbs.)
Transfer Case Attaching Nuts . . 47 N·m (35 ft. lbs.)
U-Joint Clamp Bolts . . . . . . . . 19 N·m (170 in. lbs.)

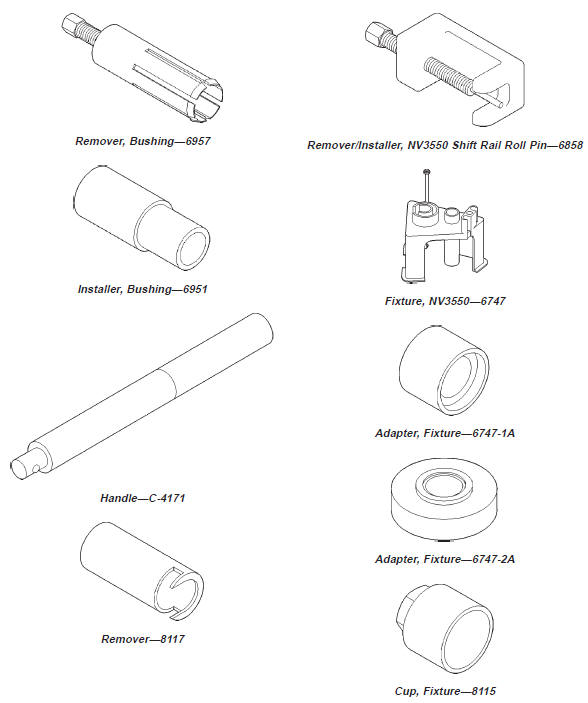

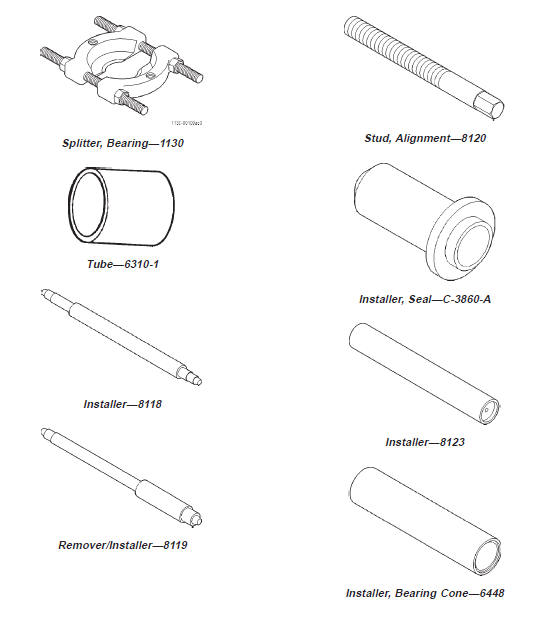

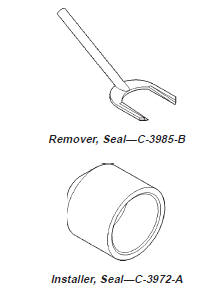

Special tools

NV3550 MANUAL TRANSMISSION

NV3550 MANUAL TRANSMISSION

NV3550 MANUAL TRANSMISSION

NV3550 MANUAL TRANSMISSION
